Aluminum Tripod 3S

The Aluminum Tripod 3S is a very robust tripod at a fair price and is ideally suited to position MBASS30, the 2-channel sampling pump BiVOC2 and also the ionometer IM806 for indoor and outdoor samplings. It has a very high load capacity to carry the tripod table DuoSta and the devices.

The name 3S means:

• Swift assembly and mounting of the sampling devices
• Strong enough to carry the sampling devices – Load capacity: 12 kg
• Safe stand with the device carrier DuoSta and a sampling device

Assembly is done very quickly:

• Take the tripod 3S out of the bag
• Fold out the tripod legs up to the first stop (it is not required to fold the legs over the center post)

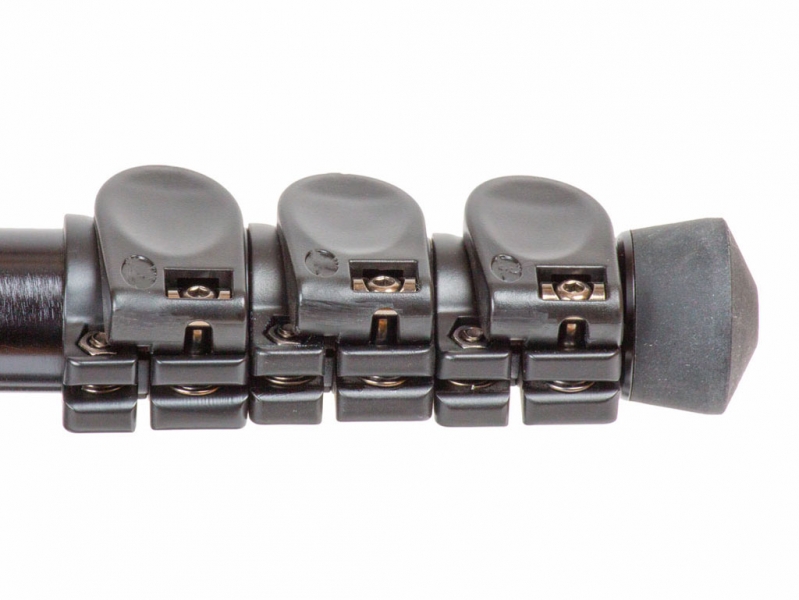

• Open the three levers on each tripod leg (all levers on one leg can be opened together)
• Pull out the tripod legs and lock them with the levers (the position of the levers allows to optically control whether the legs are locked)
• Put the tripod on the ground
• Mount the sampling device or the tripod table DuoSta with the quick-change adapter onto the Aluminum Tripod 3S
• Done

Additional good features of the tripod 3S:

• Height-adjustable center post
• Each tripod leg has three angular stops. These allow for a safe stand of the tripod 3S even on difficult undergrounds and stairs.

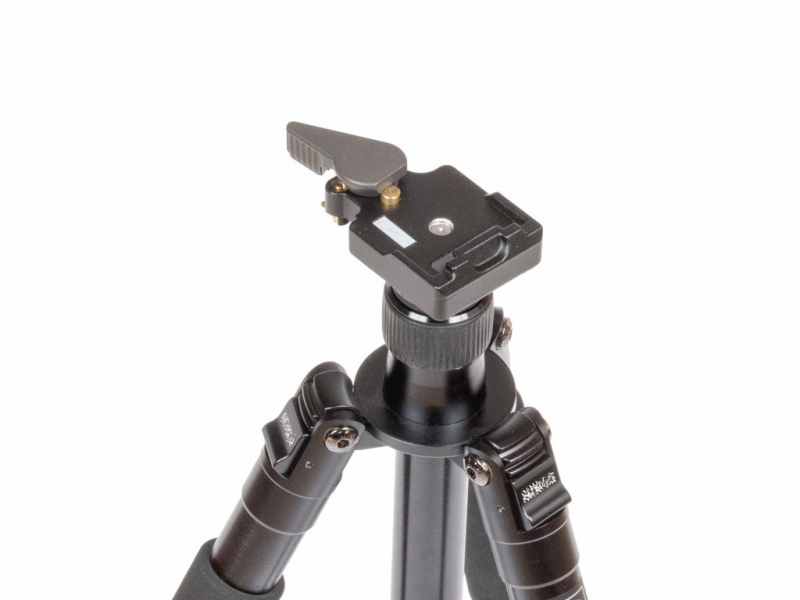

• Quick-change adapter that is suitable for the sampling devices
• Spikes that can be screwed out for a safe stand on outdoor operations
• The tripod leg lockings can be adjusted with the tools included

The article number is 02-120.

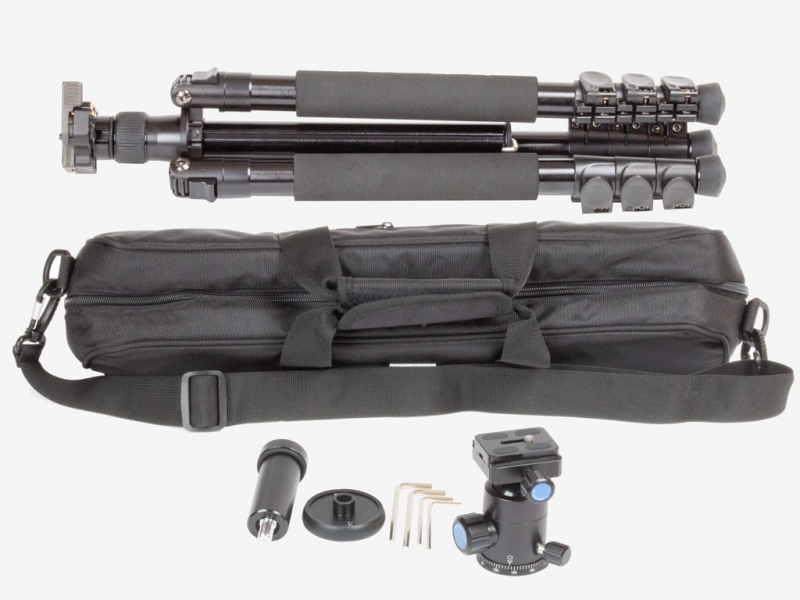

Scope of Delivery

• Aluminum Tripod 3S
• Carrying Bag
• Mini Column (not mounted)
• Ball Head (not mounted)
• Tools to readjust the tripod leg lockings

Note: For a safe operation with sampling ­devices, we do not recommend the use of the included ball head.
